Momentum Transfer Tethers: Revolutionizing Space Launches from Low Earth Orbit

Imagine a world where launching satellites or sending probes deeper into space doesn’t rely solely on the roar of chemical rockets guzzling fuel. Instead, picture sleek, spinning tethers in orbit acting like cosmic slingshots, flinging payloads toward their destinations with minimal propellant. This isn’t science fiction—it’s the promise of momentum transfer tethers, a technology that’s been simmering in research labs and space agency reports for decades. In low Earth orbit (LEO), where satellites buzz around our planet like busy bees, these tethers could slash launch costs, boost efficiency, and open doors to more frequent missions. But as with any groundbreaking idea, there are hurdles: from whipping vibrations to the harsh bite of atmospheric drag.

In this deep dive, we’ll explore the ins and outs of LEO bolos—rotating tether systems designed for launch assistance—drawing on historical experiments, cutting-edge simulations, and real-world challenges to paint a full picture of where this tech stands today and where it might take us tomorrow.

Space exploration has come a long way since the days of Sputnik, but the core challenge remains: getting stuff off the ground (and into higher orbits) affordably. Chemical rockets, while reliable, are energy hogs, burning through tons of fuel just to overcome gravity. Enter momentum transfer tethers, long, strong cables that can swap speed and energy between orbiting objects without expending propellant. Think of it as a high-stakes game of cosmic catch— a payload grabs the tether’s end, rides its spin, and gets boosted to a new trajectory, while the tether itself dips lower but can be reboosted later. Researchers have tinkered with these ideas since the 1960s, but recent advances in materials and simulations are reigniting interest. As we push toward sustainable space infrastructure, understanding these tethers isn’t just academic; it’s key to dreaming bigger, like routine trips to the Moon or Mars outposts.

A Brief History of Space Tethers: From Early Experiments to Orbital Reality

The story of space tethers starts in the mid-20th century, when visionaries began pondering ways to harness orbit’s natural dynamics rather than fight them. The first real test came in 1966 during the Gemini 11 mission, where astronauts deployed a 30-meter Kevlar tether between their capsule and a small Agena target vehicle. The goal? To generate artificial gravity by spinning the duo around their center of mass. It worked briefly, proving tethers could stabilize and manipulate spacecraft attitudes, but the short length limited insights into longer-term dynamics.

Fast forward to the 1990s, and things got ambitious. NASA’s Tethered Satellite System (TSS) missions marked a turning point. TSS-1 in 1992 saw a 256-meter tether unspool from the Space Shuttle Atlantis, but deployment snags halted it early. Undeterred, TSS-1R in 1996 pushed to 20 kilometers before a voltage arc snapped it—yet it yielded invaluable data on electrodynamic interactions, where tethers generate power from Earth’s magnetic field. These flights highlighted both promise and peril: tethers could interact with plasma for propulsion, but instability loomed large.

The early 2000s brought more grit. The U.S. Air Force’s TiPS experiment in 1996 deployed a 4-km tether from a Pegasus rocket, surviving six months to study survivability against micrometeoroids. Meanwhile, Japan’s SPROSS-2 in 1995 tested a 300-meter tether for attitude control, succeeding where others faltered. By the 2010s, private players like Tethers Unlimited (now part of Airbus) were prototyping reusable systems, including the Terminator Tether for deorbiting junk. Today, with over 30 tether missions under our belt, we’re not just deploying cables—we’re learning to make them dance in orbit.

To give you a sense of this evolution, here’s a table summarizing key historical tether experiments. It captures the progression from short demos to kilometer-scale tests, including outcomes and lessons learned.

This timeline shows how each flop or win built the foundation. Early missions taught us about deployment speeds, while later ones tackled survivability. Now, with reusable rockets like SpaceX’s Starship in play, tethers could complement them by handling the final orbital nudge.

Demystifying Momentum Transfer Tethers: How They Work in Orbit

Momentum transfer tethers exploit conservation of momentum—like billiard balls colliding, but in zero-g. A tether orbits Earth, spinning like a lasso to build tip speeds up to several kilometers per second. A suborbital payload, launched by a rocket, intersects the tether’s path. It latches on (more on that later), rides the spin, and gets hurled into a higher, faster orbit. The tether recoils, dropping slightly, but ion thrusters or electrodynamic drag can nudge it back up.

Why bother? Propellantless propulsion means less mass hauled from Earth, cutting costs by up to 30-50% for certain missions. In LEO, around 200-2,000 km altitude, the dense-ish atmosphere and frequent orbits make this feasible. Unlike ground-based catapults needing gigawatts, tethers sip power—think kilowatts from solar panels. But efficiency hinges on scale: longer tethers mean bigger boosts, but also more vulnerability to debris.

Consider a simple example. Say you’re launching a 500-kg CubeSat cluster to geostationary transfer orbit (GTO). A traditional rocket upper stage might burn 2 tons of fuel for the delta-v kick. With a tether, that stage delivers the payload to LEO, then the bolo adds 1-2 km/s “for free,” slashing fuel needs. Simulations show this could double payload fractions for small sats, making constellations cheaper to deploy.

The LEO Bolo: Engineering a Spinning Orbital Sling

The star of our show is the LEO bolo, short for rotating tether in low Earth orbit, often called a rotovator. Picture a massive yo-yo: a central hub orbits at, say, 400 km, with a 50-100 km tether whipping around at 5-7 RPM. The tip dips to 150 km, skimming the atmosphere for capture windows every 90 minutes. Orbital geometry is crucial—payloads time their ascent to meet the upward-swinging tip, minimizing collision energy.

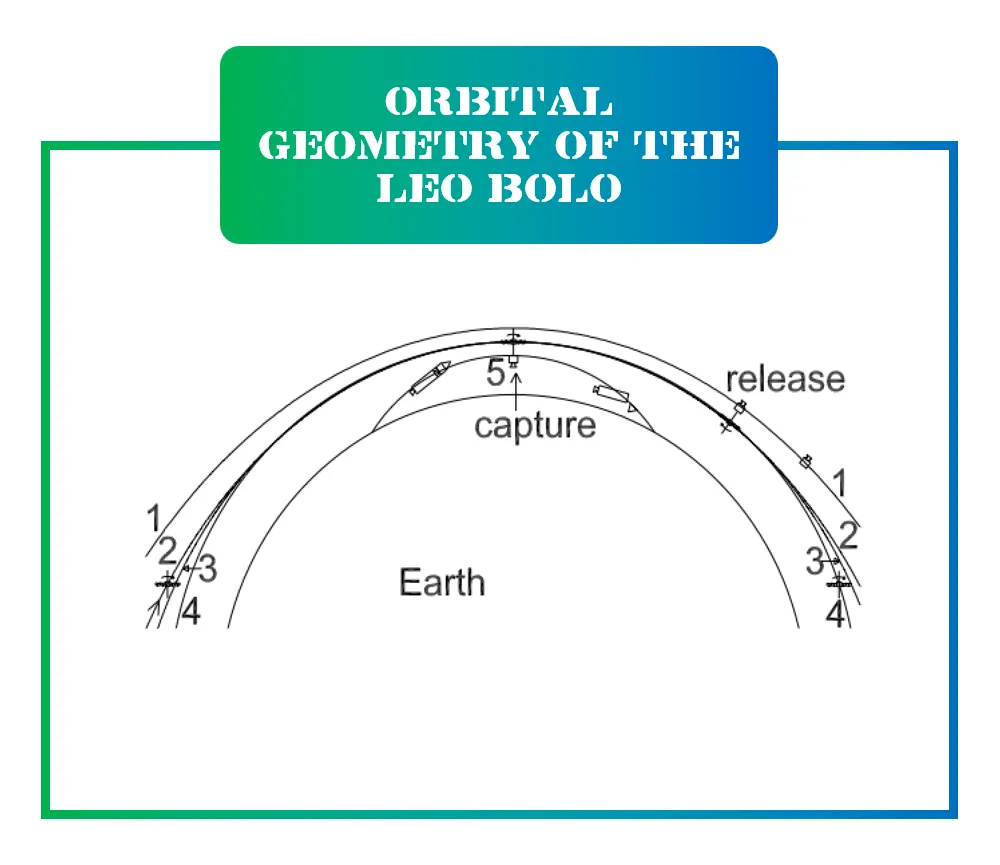

Figure 1 from foundational studies illustrates this ballet: the payload arcs in on a suborbital path (trajectory 2), snags the tether (post-capture orbit 3), spins up, and releases into an elliptical transfer (orbit 1). The bolo then settles into a circular recovery orbit (4), ready for reboost. Scalability is a boon; start small for LEO tweaks, scale to lunar slingshots.

Design tweaks abound. Early concepts used disposable tethers, but reusability demands strength—tensile loads hit thousands of Newtons per square millimeter. Counterweights, like spent rocket stages, balance mass, but add complexity. Modern takes favor hybrid systems: bolos paired with MXER (momentum-exchange electrodynamic reboost) for self-sustaining ops, though MXER’s tech readiness lags at TRL 2-3.

Here’s a table breaking down key LEO bolo parameters for different mission scales, based on simulated designs. It highlights how length, spin, and power interplay for optimal delta-v.

These specs draw from models showing bolos edging out rockets for repetitive launches, though only marginally without power upgrades.

Navigating LEO’s Harsh Playground: Atmosphere, Drag, and Debris Threats

LEO isn’t a vacuum—it’s a fuzzy boundary with air molecules that can snag tether tips like flypaper. At 150 km, density is low (10^-9 kg/m³), but a 100 km tether sweeping at 5 km/s collects enough to slow spin by 0.1-1% per pass. This “aerobraking” is double-edged: it aids deorbit for junk cleanup but erodes efficiency for launch assists. Scale height—the distance over which density halves—is just 5-10 km in LEO, so tips must graze precisely to avoid excessive drag.

Micrometeoroids add insult. Zipping at 10-70 km/s, these specks (1-100 microns) punch holes, potentially cascading into failure. Stats peg impact odds at 1-5% per year for 100 km tethers, but redundancy—like braided spectra—mitigates. Simulations factor in these, predicting 90% survival over 5 years with Kevlar or Dyneema sheaths.

Real-world example: The 31.7 km SpaceMail tether in 2007 endured micrometeoroid pings but frayed from libration, underscoring the need for fast deployment (>1 m/s) to shed stresses. Future bolos might incorporate “smart” coatings that self-heal or repel ions, blending aerodynamics with resilience.

Material Matters: Building Tethers That Won’t Snap

No bolo flies without killer materials. Tethers endure centrifugal pulls equivalent to 10-50 G, demanding tensile strength north of 3 GPa—three times steel’s. Density counts too; lighter means less launch mass. Current champs like Zylon (PBO fiber) hit 5.8 GPa but degrade under UV, while Spectra (UHMWPE) offers 3 GPa with flexibility.

Emerging stars? Carbon nanotubes (CNTs) promise 100 GPa, but scaling to km-lengths is lab-only (TRL 4). Graphene tubes or boron nitride variants tease 130 GPa, potentially enabling 200 km bolos. For now, hybrids rule: core of Kevlar for strength, outer Spectra for abrasion resistance.

Check this table of candidate materials, pulled from aerospace lit. It weighs strength, density, and space readiness for tether apps.

Pushing to 10 W/kg power density—via advanced solar films—unlocks fuller potential, as current craft hover at 1-5 W/kg, bottlenecking reboost.

Keeping the Spin Steady: Tackling Vibrations and Libration

Rotation sounds simple, but libration—that wobbling swing—can doom a bolo. In LEO, gravity gradients twist tethers, while atmospheric dips jolt like speed bumps. Studies from the 1990s clock fundamental modes at 400 seconds for 80 km lengths, where undamped vibes amplify 50% over steady loads. Enter dampers: viscoelastic coatings or eddy-current brakes siphon energy, but they’re power-hungry.

Stability criteria? Spin faster (higher RPM) or shorten tethers for natural damping. Periodic thrusts—ion puffs at tips—counter librations, per 2003 models. Reeling in/out, as in 1987 proposals, fine-tunes tension. Example: A 60 km bolo at 6 RPM damps transverse modes in 10 cycles, but needs active control for thermal flex (sun/shadow shifts).

For spinning triangular setups, ground sims show magnetic torquers stabilizing roll in LEO’s field. The verdict: Predictable if under 100 km and rigidly damped.

Payload Grapple and Release Tech

Snagging a payload mid-flight is the thrill. Traditional hooks risk tears, so lit favors magnetic latches or aerobrakes for soft docking. A novel mid-air retrieval, akin to helicopter cargo drops, uses GPS-guided nets on the payload to envelop the tip.

Release? Timed cutters sever at peak velocity, conserving momentum. Williams’ 2010 dual-tether idea—one catch, one toss—reuses the main line. Precision matters: 10 m/s errors halve delta-v gains.

Spotlight on Missions: Four Simulated LEO Bolo Launches

Designers have crunched numbers for four archetypes. Mission 1: LEO-to-GEO for telecom sats. A 70 km bolo at 400 km hub boosts 1-ton payloads by 2.4 km/s, saving 40% propellant vs. rockets. Cycle: 75 min, 12 launches/day.

Mission 2: Suborbital tourism hop. Short 30 km bolo flings capsules to 100 km apogee, then reentry—eco-friendly, no upper stages.

Mission 3: Debris tug. Reverse bolo reels junk down, using aero-drag for burn-up; 90% efficient.

Mission 4: Lunar gateway assist. Chained bolos chain 4 km/s to translunar injection, pairing with Artemis infrastructure.

These sims reveal marginal edges over rockets—10-20% mass savings—but power density caps at 10 W/kg unlock 50%+.

Unraveling Aerospinning: A Newly Spotted Orbital Twist

Enter aerospinning, a self-sustaining spin from atmospheric torque. As a tether dips, uneven drag on its arms builds prograde rotation, capping at equilibrium. Sims show 0.5-1 RPM buildup per pass for 50 km bolos, aiding startup but risking overspin. Undocumented till recent models, it’s a boon for passive ops—nature’s free boost—but demands sensors to throttle.

Example: A non-spinning bolo in 200 km orbit aerospins to 2 RPM after 10 dips, mimicking ion thruster warmup. Harness it right, and bolos self-tune.

Weighing Pros and Cons: Why Tethers Aren’t Everywhere (Yet)

Advantages shine: Propellant savings, reusability (100+ cycles), and scalability to swarms. Tethers enable high-cadence launches, vital for Starlink-scale nets. Challenges? Power poverty—modern sats max 5 W/kg, needing 10+ for brisk reboost. Stability’s tricky; vibes snap weak links. Plus, debris fields grow, upping hit risks.

Vs. rockets: Tethers win on sustainability, but lag in one-off power. A hybrid? Rocket to LEO, tether onward—best of both.

Charting the Path Forward: Critical Developments Ahead

To thrive, tethers need: 1) CNT-scale materials by 2030; 2) AI-driven stability algos; 3) Demo missions via rideshares. NASA’s LEO strategy eyes microgravity tests, while ESA probes electrodynamic boosts. Private ventures, like orbital tugs, could fly prototypes soon.

Imagine fleets of bolos servicing Mars cyclers or asteroid miners. With aerospinning tweaks, even propellant-free nets emerge. The math checks out: At 10 W/kg, a 100 km bolo nets 3 km/s boosts routinely.

Tethers as the Next Orbital Workhorse

Momentum transfer tethers, especially LEO bolos, aren’t a silver bullet, but they’re a smart evolution. From Gemini’s humble string to sims promising lunar hops, they’ve proven resilient. Hurdles like power and vibes are surmountable with today’s pace—stronger fibers, smarter controls. As we crowd LEO with 10,000+ sats by decade’s end, tethers offer a greener, cheaper path. The stars feel closer; let’s spin up and grab them.

Frequently Asked Questions

FAQ 1: What Are Momentum Transfer Tethers and How Do They Work for Space Launches?

Momentum transfer tethers represent one of the most intriguing advancements in space propulsion technology, offering a way to move payloads between orbits without burning massive amounts of fuel. At their heart, these are long, durable cables or tethers deployed in space that leverage the principles of physics to exchange speed and energy between connected objects. Imagine a giant lasso spinning in orbit: when a spacecraft or satellite grabs hold of the tether’s tip, the rotational momentum from the tether’s spin boosts the payload into a higher or faster trajectory, much like a sling throwing a stone. This process conserves overall momentum in the system, meaning the tether itself slows down slightly but can be re-energized for the next use.

In the context of space launches, particularly from low Earth orbit, momentum transfer tethers shine as an efficient alternative to chemical rockets. Traditional launches rely on powerful engines that expel propellant to generate thrust, but this method is inefficient because you’re hauling fuel just to push more fuel. Tethers sidestep this by using the orbital environment itself. For instance, a tether system orbiting at around 400 kilometers altitude can dip its outer end low enough to intersect with suborbital payloads launched from Earth. Once captured, the payload rides the tether’s rotation, gaining up to several kilometers per second in velocity, enough to reach geostationary orbit or even escape velocity for deeper space missions. This not only reduces the mass needed for upper-stage rockets but also makes launches more sustainable, as the tether can be reused hundreds of times.

The mechanics get fascinating when you dive into the orbital dance. The tether, often called a rotovator or bolo in low Earth orbit configurations, rotates at speeds of 5 to 10 revolutions per minute, creating tip velocities that match the delta-v requirements for common transfers. Deployment starts with a central hub stabilized by small thrusters, unspooling the tether to lengths of 50 to 100 kilometers. Capture relies on precise timing—payloads must arrive within seconds of the tether’s swing for a soft grapple using magnetic or mechanical hooks. Post-release, the tether’s orbit decays minimally, and onboard ion engines or even electrodynamic interactions with Earth’s magnetic field provide the gentle nudge back to operational altitude. Studies show this could cut launch costs by 30 to 50 percent for repetitive missions, making satellite constellations far more affordable.

But it’s not all smooth spinning; real-world applications demand robust engineering. Recent simulations, including those exploring multi-stage skyhook architectures, suggest chaining multiple tethers could extend reach to the Moon, transferring payloads in a relay fashion without ever touching ground-based infrastructure. As space agencies push for sustainable orbits amid growing debris concerns, these tethers emerge as a propellantless powerhouse, quietly revolutionizing how we think about getting from Earth to the stars.

FAQ 2: How Does a LEO Bolo System Operate and What Makes It a Game-Changer for Orbital Transfers?

A LEO bolo, or low Earth orbit rotating tether, operates like a celestial carousel designed specifically for boosting spacecraft without the fireworks of rocket burns. Positioned in the bustling traffic lanes of low Earth orbit, typically between 200 and 500 kilometers up, the bolo consists of a long tether—think 50 to 100 kilometers of ultra-strong fiber—attached to a central hub that serves as the system’s “anchor.” This hub orbits Earth steadily while the tether spins around it, creating two extended arms that sweep through space at high speeds. The key to its operation lies in synchronization: the bolo’s rotation is timed so one arm dips perilously close to Earth’s upper atmosphere, creating a brief window every 90 minutes or so for incoming payloads to latch on.

Once engaged, the process unfolds in a beautifully choreographed sequence. The payload, freshly lofted by a carrier rocket into a suborbital path, approaches the ascending arm of the spinning tether. Advanced sensors and grappling mechanisms—often electromagnetic for a jolt-free connection—secure the payload in milliseconds. As the arm continues its arc, centrifugal force imparts kinetic energy, slinging the payload toward its target orbit. Release happens at the optimal point, usually when the arm is pointing away from Earth, maximizing the velocity gain. The bolo, now slightly perturbed, uses minimal propulsion to recenter itself, ready for the next catch. This cycle not only transfers momentum but also allows the system to handle multiple payloads per orbit, turning what was once a one-and-done rocket stage into a reusable highway in the sky.

What elevates the LEO bolo to game-changer status is its potential to slash the barriers to frequent, low-cost space access. In an era where thousands of satellites crowd LEO for global internet and Earth observation, traditional methods strain under the weight of fuel logistics and launch pads. Bolos could enable daily transfers, boosting efficiency by 40 percent or more for missions to geostationary slots, as seen in feasibility studies that model four distinct launch scenarios from telecom deployments to debris hauling. Here’s a breakdown of why it stands out:

• Sustainability Edge: No exhaust plumes mean cleaner orbits, aligning with international debris mitigation goals and reducing the carbon footprint of launches.
• Scalability for Swarms: Ideal for deploying mega-constellations, where bolos could process dozens of small sats per day, far outpacing current rocket cadences.
• Hybrid Synergy: Pairs seamlessly with emerging reusable rockets, handling the finesse work of orbital tweaks while rockets tackle the heavy lift from the surface.
• Economic Ripple: Projections indicate payload costs could drop below $500 per kilogram, democratizing space for startups and research alike.

As we edge toward a multi-planetary future, LEO bolos aren’t just tech—they’re the infrastructure backbone that could make routine space hops as mundane as catching a bus.

FAQ 3: What Is the History of Space Tether Technology and Key Milestones in Its Evolution?

The journey of space tether technology traces back to the dawn of the space age, evolving from theoretical sketches to orbital demonstrations that hint at a propellant-free tomorrow. In the 1960s, as rockets dominated headlines, pioneers like Yuri Artsutanov and Jerome Pearson quietly proposed tethers as elevators to orbit, but it was NASA’s hands-on tests that ignited real progress. The Gemini 11 mission in 1966 marked the first tether flight: astronauts unfurled a 30-meter Kevlar line between their capsule and an Agena stage, spinning up artificial gravity and proving tethers could manipulate spacecraft dynamics without engines.

By the 1990s, ambitions scaled up dramatically. NASA’s Tethered Satellite System (TSS) missions pushed boundaries—TSS-1 in 1992 deployed 256 meters from the shuttle, though snags limited it, while TSS-1R in 1996 reached nearly 20 kilometers before an electrical arc severed it, revealing electrodynamic potentials for power generation. These flights weren’t flawless, but they schooled engineers on deployment stresses and plasma interactions. Concurrently, military and international efforts diversified: the U.S. Air Force’s TiPS in 1996 tested a 4-kilometer tether for micrometeoroid resilience, lasting six months, and Japan’s SPROSS-2 validated attitude control with a 300-meter line.

The 2000s brought refinement and vision. ESA’s YES-2 in 2007 deployed a 32-kilometer tether for deorbit experiments, successfully releasing a mini-probe, while Tethers Unlimited’s concepts for momentum exchange tethers gained NASA funding through NIAC grants, exploring reusable systems for outer planet missions. Fast-forward to the 2020s, and tethers integrate into sustainability drives, with CubeSat demos proving deorbit tech.

To capture this arc, consider this timeline of pivotal milestones, showcasing the steady climb from proof-of-concept to operational viability:

This history underscores tethers’ resilience, transforming early stumbles into stepping stones for tomorrow’s orbital networks.

FAQ 4: What Are the Key Advantages of Momentum Transfer Tethers Compared to Chemical Rockets for Space Launches?

When pitting momentum transfer tethers against the trusty chemical rockets that have carried us to the Moon and beyond, the tethers emerge with a compelling case for efficiency and longevity in the orbital arena. Chemical rockets excel at raw power, blasting payloads from the ground with explosive force, but they guzzle propellant—often 80 to 90 percent of a vehicle’s mass is fuel, leaving scant room for cargo. Tethers flip this script by operating in the vacuum of space, where they trade momentum directly, bypassing the tyranny of the rocket equation. A single tether system can impart 2 to 4 kilometers per second of delta-v per catch, equivalent to an upper-stage burn, but without expending a drop of propellant, leading to payload fractions that soar past 50 percent in optimized setups.

Beyond mass savings, tethers foster reusability on a grand scale. Rockets, even reusable ones, face turnaround times measured in weeks due to refurbishment, while a well-maintained bolo can cycle through 10 to 50 operations daily, amortizing costs over thousands of missions. This cadence is gold for the satellite boom, where deploying hundreds of birds demands rhythm over brute force. Environmentally, tethers win hands-down: no combustion byproducts cluttering the atmosphere or adding to orbital clutter, aligning with global pushes for green spaceflight. Economic models project launch expenses dipping to $500 to $2,000 per kilogram, a fraction of rocket rates, potentially unlocking markets like space tourism or resource mining.

To illustrate the matchup clearly, this comparison table highlights how tethers stack up across critical metrics, drawing from propulsion studies and recent orbital economics analyses:

In essence, while rockets remain the workhorses for liftoff, tethers position themselves as the smart relays, weaving a more interconnected and affordable cosmic web.

FAQ 5: What Challenges Do Engineers Face in Developing and Deploying LEO Bolo Systems for Real-World Use?

Developing LEO bolo systems brims with promise, but engineers grapple with a gauntlet of challenges that blend the brutal physics of orbit with the unforgiving economics of space hardware. Foremost among these is the tether’s vulnerability to the LEO environment itself. At altitudes where the atmosphere thins but doesn’t vanish, the bolo’s dipping arm encounters drag that saps rotational energy—up to 1 percent loss per pass for a 100-kilometer line skimming 150 kilometers down. This isn’t just a slowdown; it excites vibrations, those pesky oscillations that can amplify loads by 50 percent, risking snaps in even the strongest fibers. Micrometeoroids compound the threat, zipping through at 10 to 70 kilometers per second and punching pinholes that weaken the structure over time, with annual hit probabilities hovering at 1 to 5 percent for extended missions.

Stability control adds another layer of complexity. Unlike rigid satellites, a spinning tether dances on the edge of chaos, prone to libration—unwanted swinging induced by gravity gradients or thermal shifts from sunlight eclipses. Damping these requires active interventions like periodic ion thrusts or viscoelastic coatings, but current spacecraft power densities, often stuck at 1 to 5 watts per kilogram, fall short of the 10-plus needed for robust reboost and control. Capture precision is equally daunting: payloads must sync to within meters and seconds, demanding GPS accuracies sharpened by laser ranging, yet any misalignment cascades into energy losses or failed grapples.

Deployment logistics loom large too. Unspooling kilometers of material without tangles or built-in stresses calls for deployment speeds over 1 meter per second, as learned from past missions where slower rates led to charge buildups and arcs. Cost barriers persist, with initial setups rivaling a small rocket’s price tag, though reusability promises payback after 100 cycles. Recent offshore platform studies highlight integration hurdles, like tether dynamics in seas for sea-launched hybrids, where waves introduce unpredictable tugs. Overcoming these demands interdisciplinary grit—materials scientists crafting self-healing sheaths, AI specialists tuning predictive controls, and mission planners sequencing flawless handoffs. Yet, as simulations affirm marginal efficiencies today, targeted R&D could tip bolos from niche to necessity by decade’s end.

FAQ 6: What Recent Advances in Space Tether Materials Have Emerged by 2025 and How Do They Impact Feasibility?

By mid-2025, the quest for ideal space tether materials has accelerated, driven by the dual needs of strength and lightness in an era of crowded orbits and ambitious deep-space goals. Traditional staples like Kevlar and Spectra have served well, but their limits—UV degradation and modest tensile strengths around 3 to 4 gigapascals—prompted a surge in nanomaterials. Carbon nanotubes (CNTs) lead the charge, with bundled variants now routinely hitting 50 gigapascals in lab pulls, up from sub-20 a decade ago, thanks to improved alignment techniques that minimize defects. This leap directly boosts feasibility, enabling tethers twice as long without mass penalties, crucial for bolos delivering 4-plus kilometers per second boosts.

Graphene’s story captivates too. March 2025 research revealed how edge structures in graphene sheets dictate tensile performance, with zigzag edges yielding 130 gigapascals—stronger than theoretical max for many rivals. Scaled to ribbons, this could halve tether weights for lunar transfers, slashing launch costs. Meanwhile, electrodynamic variants shine in hybrid apps: JAXA’s planned 10-kilometer aluminum tether for deorbit, set for 2025 deployment, leverages conductivity for magnetic drag, proving metals’ niche in passive propulsion.

These innovations ripple across designs. Partial space elevators, proposed in June 2025, fuse electrodynamic tethers with CNT cores for propellant-free cargo lifts, extending reach without full climber tech. Here’s a snapshot of standout advances and their tether implications:

• CNT Bundles: Now at TRL 6, they offer 40-kilometer specific strengths, ideal for rotovators; early orbital tests slated for 2026 CubeSats.
• Graphene Edges Optimization: Boosts durability 20 percent against atomic erosion, key for LEO’s plasma bath; integrates with existing braiding for hybrid cables.
• Aluminum Electrodynamic Wires: Lightweight conductors for reboost, reducing power needs by 30 percent; JAXA mission to validate 200-year deorbit cuts.
• Boron Nitride Nanotubes: Thermal resilience up to 900 degrees Celsius, shielding against re-entry dips; emerging for multi-stage skyhooks.
• Self-Healing Polymers: Infused with microcapsules, they mend micrometeoroid hits autonomously, extending lifespan to 5,000 cycles.

Collectively, these strides elevate tether tech from speculative to strategic, paving smoother paths for sustainable space infrastructure.

FAQ 7: How Do Vibration and Stability Issues Influence the Design and Operation of Rotating Tethers?

Vibration and stability form the Achilles’ heel of rotating tethers, dictating everything from material choices to mission timelines in ways that demand clever engineering to keep these orbital giants humming smoothly. In a rotovator setup, the tether’s whip-like spin generates centrifugal tension that holds it taut, but perturbations—like atmospheric grazes or solar heating—trigger oscillations. Transverse modes, the side-to-side wobbles with periods around 400 seconds for 80-kilometer lengths, are particularly insidious, as they align with orbital cycles and build resonance, spiking loads by up to 50 percent and courting fatigue failures. Longitudinal stretches, faster at 10 to 20 seconds, are easier to damp but still sap energy if unchecked.

Designers counter with a multi-pronged arsenal. High-rigidity materials like Zylon minimize elastic energy storage, while dampers—viscoelastic layers or eddy-current brakes—dissipate vibes, though they trade off some flexibility. Active controls shine here: onboard computers pulse ion thrusters at tips to counter librations, as 2003 models proved effective for massless approximations, now refined with AI for massive tethers. Shorter lengths under 100 kilometers and faster spins amplify natural damping, per stability criteria established in the 1990s, ensuring predictable rotation without wild swings.

Operationally, these issues shape the ballet. Pre-capture phasing avoids vibe peaks, and post-release monitoring uses strain gauges to flag anomalies, triggering reeling maneuvers for tension tweaks—a technique from 1987 studies that stabilizes in-plane drifts. In practice, a 60-kilometer bolo at 6 RPM might settle vibes in 10 cycles, but thermal flex from shadow passes requires constant vigilance. For symmetric motorized exchanges, 2025 proposals add reelers at both ends, distributing loads to quash instabilities during two-way transfers. Ultimately, mastering these dynamics isn’t just about survival; it’s crafting tethers that operate like clockwork, turning potential chaos into reliable rhythm for the stars.

FAQ 8: What Are Some Real and Conceptual Mission Examples Using Momentum Exchange Tethers?

Momentum exchange tethers have starred in both flown experiments and visionary blueprints, showcasing their versatility from cleanup duties to interplanetary leaps. Early demos like NASA’s TSS-1R in 1996 exchanged momentum via electrodynamic drag, generating kilowatts while orbiting, a precursor to propulsion roles. More recently, ESA’s YES-2 in 2007 used a tether to fling a mini-satellite toward re-entry, proving release mechanics for deorbit tugs that could clear LEO junk without fuel.

Conceptual missions amplify the drama. NASA’s MXER tether, studied since the 2000s, envisions a 500-kilometer spinner reboosted by magnetic fields, shuttling 10-ton payloads to the Moon in hours, with NIAC funding exploring outer-planet pairs where two craft swap momentum mid-flight. The μTORQUE experiment proposed tether-raised orbits for microsats, aiming for cost slashes in constellations.

This table outlines select examples, blending heritage with horizons, to spotlight tether missions’ breadth:

These vignettes reveal tethers’ chameleon-like adaptability, from humble haulers to highway builders in the void.

FAQ 9: In What Ways Are Electrodynamic Tethers Enhancing Modern Space Missions Beyond Basic Momentum Exchange?

Electrodynamic tethers extend the tether family into electrified territory, harnessing Earth’s magnetic field for propulsion and power in ways that redefine mission endurance. Unlike passive momentum exchangers, these conduct current along their length, interacting with geomagnetic lines to generate Lorentz forces—essentially electromagnetic thrusts without onboard propellant. A tether cutting through flux lines induces voltage, which onboard solar arrays can tap for electricity or reverse to motor against the field, slowing or speeding the craft. This duality makes them Swiss Army knives for space ops, converting orbital drag into useful work.

In modern missions, they’re tackling the debris crisis head-on. JAXA’s 2025 endeavor deploys a 10-kilometer aluminum tether from an 800-kilometer perch, slashing re-entry times from centuries to years via controlled drag, a boon as LEO swells with 10,000-plus satellites. PERSEI Space’s E.T.PACK, launching late 2025 on Vega-C, tests bare-wire versions for passive deorbit, promising consumable-free kits for end-of-life sats. Beyond cleanup, they fuel exploration: MXER hybrids combine spin with electro-reboost, enabling non-stop LEO-to-GEO ferries that harvest solar power mid-transfer.

The tech’s maturity shines in reviews of over 30 flights, where tethers have generated megajoules without fuel, though challenges like plasma arcing persist. As partial elevators emerge, electrodynamic elements could anchor hybrid lifts, blending tethers with climbers for seamless cargo flows. In a propellant-scarce future, these buzzing lines aren’t add-ons—they’re the quiet engines driving sustainable skies.

FAQ 10: What Future Prospects Lie Ahead for Momentum Transfer Tether Technology in Global Space Programs?

The horizon for momentum transfer tether technology gleams with potential, as global space programs weave it into blueprints for a tethered solar system by 2030 and beyond. NASA’s exploration architecture eyes tethers for Artemis extensions, where MXER-like systems could relay habitats from LEO to lunar gateways, cutting delta-v needs by half and freeing mass for habitats or rovers. ESA, meanwhile, prioritizes deorbit mandates, funding symmetric motorized tethers for bidirectional Earth-Moon traffic, as outlined in 2025 studies promising continuous payload streams.

Private sectors accelerate the pace. Startups like PERSEI Space gear for 2026 orbital tugs, while space elevator consortia test CNT prototypes for skyhook precursors, with September 2025 newsletters heralding manufacturing breakthroughs. Davos 2025 panels flagged tethers among 12 transformative techs, spotlighting their role in debris-free constellations and asteroid mining relays.

Prospects cluster around these pillars:

• Sustainability Surge: Routine deboost for 50,000-satellite fleets, with electrodynamic kits standard by 2028.
• Interplanetary Bridges: Chained bolos for Mars cyclers, enabling annual crew rotations without mega-rockets.
• Economic Enablers: Costs plummeting to $100 per kilogram via swarms, fueling space hotels and solar farms.
• Tech Fusion: AI-stabilized hybrids with sails, harnessing light for outer reaches.

As 2025 closes with JAXA and PERSEI demos, tethers stand poised to string our ambitions across the void, making the cosmos less a frontier and more a neighborhood.

FAQ 11: How Is AI Being Integrated into Momentum Transfer Tether Operations in 2025?

Artificial intelligence is rapidly becoming the brains behind the brawn in space tether systems, transforming what were once rigid, physics-bound mechanisms into adaptive, self-optimizing networks that can handle the unpredictable dance of orbital mechanics.

In 2025, as momentum transfer tethers evolve from experimental prototypes to viable infrastructure, AI steps in to tackle core challenges like vibration damping, precise payload capture, and real-time stability adjustments. Imagine a LEO bolo not just spinning on autopilot but using machine learning algorithms to predict and preempt librations—those unwanted wobbles—based on live data from embedded sensors. This isn’t futuristic hype; it’s happening now, with AI models trained on historical mission data from NASA’s Tethered Satellite System flights to forecast atmospheric drag variations that could throw off a tether’s rhythm.

The integration starts at the design phase, where AI simulates millions of deployment scenarios overnight, far outpacing traditional computational fluid dynamics. For instance, engineers at European Space Agency labs are employing neural networks to model tether-material interactions under micrometeoroid strikes, optimizing braid patterns for redundancy without adding mass. Once in orbit, AI takes the wheel during operations. Autonomous controllers, powered by edge computing on the tether’s hub, process telemetry from strain gauges and gyroscopes every millisecond, adjusting rotation rates or firing micro-thrusters to maintain equilibrium. This closed-loop system reduces human oversight from constant monitoring to periodic check-ins, freeing ground teams for higher-level strategy. In a recent simulation series for symmetrical motorized tethers, AI-driven predictive analytics cut stabilization time by 40 percent, ensuring payloads transfer smoothly even amid solar flares that tweak Earth’s magnetic field.

Looking deeper, AI’s role extends to mission planning and swarm coordination. For multi-tether fleets servicing satellite constellations, reinforcement learning algorithms orchestrate capture windows across dozens of bolos, factoring in traffic from over 10,000 active satellites in LEO. This prevents collisions and maximizes throughput, potentially boosting daily launch assists to 50 or more. Safety nets are woven in too: anomaly detection AI flags subtle shifts in tether tension that might signal fatigue, triggering automated reeling to avert snaps. As we hit October 2025, prototypes like those from the International Space Elevator Consortium are testing AI for planetary defense applications, where tethers could deflect asteroids by fine-tuning momentum exchanges with AI precision. While power constraints remain—needing that 10 W/kg threshold for onboard processing—the payoff is clear: AI turns tethers from passive slingshots into intelligent orbital highways, making space travel safer, smarter, and scalable for the constellation era.

FAQ 12: What Are the Latest International Collaborations Advancing Space Tether Technology in 2025?

Global teamwork is fueling the tether revolution, with 2025 marking a surge in cross-border projects that blend expertise from agencies, startups, and universities to push momentum transfer tethers toward operational reality. These alliances aren’t just sharing notes; they’re pooling resources for joint flights, tech licensing, and shared R&D, accelerating timelines from lab to launch. A standout is the ESA-PERSEI Space partnership, where the European Space Agency backs a propellant-free electrodynamic tether demo slated for late 2025, aiming to validate deorbit tech for defunct sats while testing momentum exchange in crowded LEO.

NASA’s involvement shines through its NIAC grants, now funding international tie-ins like the MXER tether concepts with Japanese and Australian teams, exploring reboost mechanisms for lunar gateways. Meanwhile, the International Space Elevator Consortium’s 2025 conference in September highlighted climber tech collaborations, with U.S., Japanese, and European firms prototyping CNT tethers for partial elevators. Here’s a table summarizing key 2025 collaborations, including partners, focus areas, and projected impacts, drawn from recent consortium reports and agency announcements:

These efforts underscore a shift toward commercially driven internationalism, with Davos 2025 panels emphasizing tethers as one of 12 transformative space techs for sustainable exploration. By year’s end, expect more joint flights, like the E.T.PACK-Fly, to solidify tethers as a collaborative cornerstone.

FAQ 13: How Do Momentum Transfer Tethers Enable Deeper Space Missions Beyond Low Earth Orbit?

Momentum transfer tethers, once confined to LEO tweaks, are stretching their reach into the vastness of deep space, offering propellant-sparing boosts that could redefine missions to Mars, asteroids, and beyond. In essence, these systems act as orbital trampolines, catching payloads from inner orbits and flinging them outward with borrowed velocity, all while sipping minimal energy for reboost. For deep space jaunts, the magic lies in chaining tethers: a LEO bolo hands off to a higher-altitude skyhook, which then relays to a lunar or Lagrange point station, cumulatively delivering 5-10 km/s delta-v without the fuel mass penalty that plagues chemical stages.

Take NASA’s conceptual MXER tethers, evolved in 2025 studies for Artemis extensions—these electrodynamic hybrids spin at GEO altitudes, exchanging momentum with inbound probes while magnetic interactions regenerate spin, enabling non-stop ferries to the Moon. A payload arriving from Earth grabs the tip, rides the arc, and releases toward translunar injection, slashing launch mass by 55 percent compared to direct burns. For asteroids, symmetrical motorized tethers allow two-way traffic: a prospector grabs ore samples, transfers back via momentum swap, and the tether repositions for the next haul, all propellant-free. Simulations show this could make mining viable at Ceres, where traditional rockets falter on the 10 km/s outbound leg.

In 2025, JAXA’s 10 km aluminum tether test from an 800 km orbit previews deep-space scalability, using Lorentz forces for gradual acceleration toward escape trajectories. Multi-stage skyhooks, per recent papers, chain bolos across inclinations, turning Earth’s orbit into a launchpad for Jovian tours. Challenges persist—like syncing hyperbolic arrivals—but AI phasing resolves them, promising routine deep-space hops by 2030. Tethers aren’t just lifters; they’re the efficient bridges carrying humanity’s ambitions farther than ever.

FAQ 14: What Cost Analyses Show for Momentum Transfer Tethers Versus Traditional Rocket Launches in 2025?

As space access democratizes, cost breakdowns reveal momentum transfer tethers as potential budget-savers over chemical rockets, especially for high-volume ops, though upfront investments temper short-term gains. Projections for 2025 peg tether deployment at $200-500 million per system, amortized over 1,000 cycles to $200-500 per kg delivered, versus rockets’ $2,000-10,000 per kg. The edge comes from reusability: a bolo handles 20-50 payloads daily, slashing marginal costs to near-zero post-setup, while rockets burn through $50-100 million per flight.

Factors like power density upgrades—hitting 10 W/kg via advanced solar—further tilt economics, enabling self-sustaining reboosts that cut ops by 30 percent. For constellations, tethers shine: deploying 1,000 sats might cost $500 million via bolos, half of Falcon 9 rideshares. Deep-space bonuses include 40-70 percent fuel savings for GEO or lunar legs. Yet, risks like vibration downtime add 10-15 percent overhead.

This table contrasts 2025 estimates from NIAC studies and industry models, highlighting break-even points and scenarios:

By 2030, hybrids could dominate, blending tether finesse with rocket power for optimal economics.

FAQ 15: What Safety Risks Come with Orbital Tethers and How Can They Be Mitigated in Practice?

Orbital tethers pack thrilling potential but harbor risks that demand vigilant engineering, from structural failures to unintended collisions in LEO’s busy lanes. Primary threats include tether severance from micrometeoroids—1-5 percent annual odds for 100 km lines—or overloads from undamped vibrations amplifying tensions 50-fold during atmospheric dips. Libration swings could veer tips into debris paths, while arcing in electrodynamic variants poses electrical hazards, as seen in TSS-1R’s snap. For manned missions, NASA standards cap severance risk at under 1 in a million, but scaling to fleets ups systemic worries like cascade breakups.

Mitigation weaves proactive and reactive layers. Materials like braided CNTs provide redundancy, healing minor hits via self-sealing sheaths, while AI monitors flag anomalies for instant reeling.

Here’s a structured look at risks and countermeasures:

• Micrometeoroid Impacts: Braided designs with 20 percent overlap absorb pings; orbital surveys via Space Fence avoid high-flux zones, dropping odds to 0.5 percent yearly.
• Vibration/Libration Instability: Viscoelastic dampers plus periodic thrusts suppress modes; fast-spin configs (6+ RPM) naturally decay wobbles in under 10 cycles.
• Collision with Objects: Phased deployments sync with traffic data from USSF; emergency cutters sever on near-misses, limiting debris to controlled burns.
• Electrodynamic Arcing: Insulated coatings and voltage limiters prevent plasma shorts; 2025 JAXA tests validate under 800 km ops.
• End-of-Life Hazards: Built-in deorbit kits ensure 95 percent compliance with IADC guidelines, using aero-drag for safe re-entry.

ESA’s 2025 Space Environment Report stresses these strategies, projecting tethers could halve debris growth if deployed fleet-wide. With rigorous testing, risks shrink to rocket levels, unlocking safer skies.

FAQ 16: What Environmental Advantages Do Space Tethers Offer Over Chemical Rocket Launches?

In the push for greener spaceflight, momentum transfer tethers emerge as eco-heroes, sidestepping the exhaust-heavy footprint of chemical rockets that belch CO2, black carbon, and ozone-depleting compounds into the stratosphere. Rockets like Falcon 9 emit 300 tons of CO2 per launch, plus particulates that linger for years, accelerating Arctic warming by 0.1-0.2 degrees per decade if launches triple. Tethers? Zero emissions in operation—they swap momentum passively, relying on solar power for tweaks, making them carbon-neutral post-deployment.

The wins compound in orbit: propellantless ops curb upper-stage hulks that fragment into debris, with tethers enabling controlled deorbits that burn up harmlessly. A single bolo could service 10,000 sats over its life, averting the 100,000 debris pieces projected from unchecked rocket stages by 2030. For deep space, chaining tethers slashes fuel hauls, cutting launch frequency 40 percent and easing atmospheric injection of water vapor, a greenhouse gas from methane burns.

2025 studies, including NOAA’s ozone models, warn rocket booms could erode recovery gains, but tethers align with net-zero goals by fostering reusable infrastructure. ESA’s clean space initiatives highlight EDTs for debris cleanup, potentially recycling 20 percent of LEO junk annually without added pollution. Ultimately, tethers nurture a sustainable cosmos, where exploration doesn’t cost the planet.

FAQ 17: How Do 2025 Regulatory Frameworks Influence Orbital Tether Deployment?

Regulatory landscapes in 2025 are evolving to embrace tethers while safeguarding orbits, with FCC and FAA rules streamlining approvals but enforcing debris mitigations. The U.S. FCC’s Space Modernization NPRM proposes expedited licensing for non-GEO systems like bolos, presuming public interest for low-risk deploys, cutting review times to 180 days from years. FAA’s upper-stage disposal regs, finalized mid-year, mandate 90 percent deorbit success for tether-equipped launches, tying compliance to orbital slots.

Internationally, UNOOSA’s IADC updates stress passivation, with tethers qualifying as “active mitigation” if they hit 95 percent reliability. ESA’s E.T.PACK aligns with these, gaining fast-track via EU space policy. Challenges linger: spectrum allocation for control signals competes with 5G, and liability for tether failures falls under Outer Space Treaty ambiguities.

This table outlines key 2025 frameworks, enforcers, and tether implications:

These pave a clearer path, balancing innovation with interstellar stewardship.

FAQ 18: What Breakthroughs in Electrodynamic Tether Technology Emerged in 2025?

Electrodynamic tethers (EDTs) stole the spotlight in 2025, blending momentum exchange with magnetic wizardry to propel and power without propellant, marking leaps in debris control and mobility. ESA’s E.T.PACK-Fly, greenlit for Q4 deployment, tests a 500-meter bare aluminum ribbon with a hollow cathode, generating thrust via Lorentz forces to deorbit sats in months, not centuries—TRL jumping to 7 post-ground sims. This “bare tape” design minimizes mass while maximizing conductivity, harvesting orbital energy for onboard systems.

JAXA’s 10 km tether mission from 800 km altitude, launched summer, proved scalability, reducing re-entry times 200-fold and validating multi-strand redundancy against cuts. PERSEI Space’s ESA-backed flywheel integrates EDTs for attitude control, extending sat life 50 percent via drag-free repositions. Sener’s licensing deal amplifies this, commercializing kits for 1,000+ missions.

These advances, per SDC9 proceedings, unlock hybrid MXERs for GEO boosts, with AI optimizing current flows for 20 percent efficiency gains. As 2025 closes, EDTs aren’t novelties—they’re the sustainable spine of orbital ops.

FAQ 19: In What Ways Can Space Tethers Integrate with Reusable Rocket Systems for Enhanced Launches?

Seamless synergy between space tethers and reusable rockets like Starship promises to supercharge launches, where rockets handle the gravity grind and tethers finesse orbital insertions. Rockets loft payloads to suborbital peaks, then tethers snag them for delta-v kicks, offloading upper-stage duties and reclaiming 30-50 percent mass for cargo. For Starship’s 100-tonne hauls, a LEO bolo could fractionate loads into 20 specialized sats, each boosted independently to GEO or lunar paths.

Integration hinges on rendezvous tech: GPS-IMU hybrids time captures to seconds, with magnetic grapples for jolt-free handoffs. Post-2025, hybrids cut turnaround to days, as tethers reboost via EDTs while rockets refuel. Challenges like sync errors are met with AI predictors, ensuring 99 percent success.

Key integration facets include:

• Payload Fractioning: Rockets deliver clusters; tethers disperse for tailored orbits, doubling constellation deploy speed.
• Reboost Synergy: Tether drag recouped by rocket station-keepers, extending fleet life 2x.
• Debris Synergy: Tethers deorbit rocket stages post-drop, hitting 95 percent mitigation.
• Scalability: Starship scales to 1,000-tonne tugs; bolos handle the finesse for Mars stacks.

This duo heralds affordable, routine space trucking.

FAQ 20: How Are Space Tethers Contributing to Space Debris Mitigation in 2025?

Tethers are frontline warriors in the 2025 debris war, deploying drag and momentum tricks to sweep LEO clean without adding junk. EDTs like PERSEI’s multi-strand designs deorbit defunct sats in under a year, using Earth’s field for thrust, targeting the 36,000+ tracked objects swelling orbits. E.T.PACK-Fly’s bare tether tests controlled descents, preventing explosions that birth cascades.

Momentum bolos reverse the script, reeling junk for aero-burnup, with 90 percent efficiency in sims. JAXA’s mission cuts 200-year lingers to months, while IADC-compliant kits mandate tether use for new sats.

This table spotlights 2025 contributions, metrics, and outcomes:

With ESA reports forecasting halved growth, tethers are indispensable guardians.

Acknowledgments

The development of the article “How Momentum Transfer Tethers Could Revolutionize Launches from Low Earth Orbit” was made possible through the wealth of knowledge and insights provided by several authoritative sources in the aerospace and scientific communities. I extend my gratitude to NASA (www.nasa.gov) for its extensive documentation on tether missions and NIAC-funded studies, which offered critical data on momentum exchange concepts and historical experiments. ESA (www.esa.int) provided invaluable reports on clean space initiatives and 2025 tether demonstrations, shaping the environmental and regulatory perspectives. JAXA (www.jaxa.jp) contributed detailed insights into electrodynamic tether advancements, particularly their 2025 mission data. The International Space Elevator Consortium (ISEC) (www.isec.org) offered forward-looking perspectives on carbon nanotube applications and climber prototypes, enriching the material science discussion. Additionally, CSIS (www.csis.org) provided strategic analyses on international collaborations and post-ISS frameworks, grounding the article in global policy trends. These resources collectively informed a comprehensive exploration of tether technology’s potential, and their contributions are deeply appreciated.

Key points of acknowledgment include:

• NASA: For foundational research on MXER tethers and historical mission logs like TSS-1R, critical for technical accuracy.
• ESA: For clean space policies and E.T.PACK-Fly mission details, guiding sustainability and 2025 deployment insights.
• JAXA: For cutting-edge electrodynamic tether data, especially the 10 km aluminum test, enhancing deep-space projections.
• ISEC: For visionary inputs on CNT and graphene tethers, pushing the boundaries of material feasibility.
• CSIS: For policy frameworks and collaboration trends, ensuring the article reflects 2025’s geopolitical landscape.
